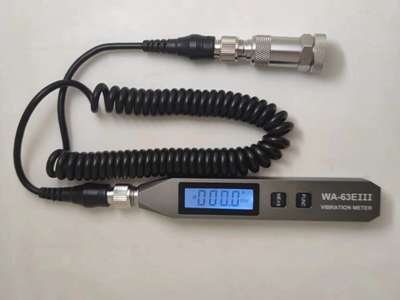

分体测振仪WA-63EIII

WA-63EII  is  a  precise  rechargeable  pen  type  vibration  measuring instrument.  The  product  has  features  as  following,convenient  to  carry,fine appearance, easy to operate and small and light.The fuselage is made of high strength aluminum alloy CNC, with anti  shock .The product mainly used for the equipment such as motor, fan,  pump, compressor and rapid maintenance of machine tools and other mechanical equipment . Preventive inspection of mechanical  equipment failure;It is especially suitable for inspectors.The vibration measurements are shown directly by three and a half liquid  crystals.The   esurement should be kept in close contact with the surface of the object, and the pressure is about 5-20n.The instrument can measure acceleration, speed and displacement.

Model：WA-63EII
Measurement function: acceleration/velocity/displacement
Work Environment ：Temperature 0 degrees ~40 degrees, relative humidity 30~90RH
Fequency Range：accelerated speed：10Hz～1KHz（L0W）
1KHz～15KHz(HI)
speed : 10Hz ～ 1KHz
displacement ：10Hz～500Hz
Range of Measurement ：accelerated speed：0.1～199.9m/s2 Peak(RMS×1.414)
speed：0.1～199.9 mm/s RMS
displacement：0.001～1.999 mm P-P(RMS×2.828)
Measuring accuracy: accuracy: ±5% + 2 word reading (% + word), calibration period for one year；
Display mode: 3 semi-liquid crystal display
Standard of Security : GB 4793.1—2007
Pollution level: level 2
Power : built-in 3.7V lithium battery, full of electricity use about 30 hours
Size：152mmx23mmx12mm(LxWxH）
Weight：75g
